Alpine Evo isn’t an out and out Enduro bike, it’s much more versatile than that, but given a chance it will dominate any trail bike in challenging and aggressive terrain. This new addition to the range is an 'Alpine' model in every sense of the word, but Orange have updated the geometry to perform in more varied situations and focused on the bike’s ride quality rather than the suspension's travel numbers.
The 160mm front and 155mm of rear suspension strikes a balance between too much and too little. Structural and layout changes to the frame allow this model to have the most progressive suspension of any Alpine model to date, making the bike more playful and agile while providing more support through the entire range of travel.

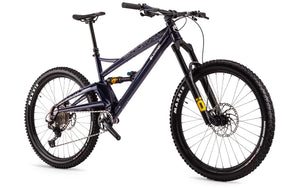

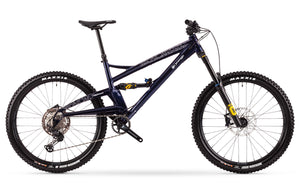

Orange Alpine EVO 2022
Colour: Lazer Blue
Size: Large (in stock)
Frame - Hand made in Halifax, 6061-T6 Monocoque. Custom Aluminium Tubing.
Wheel Size - 27.5. Rear wheel travel: 155.
Swingarm - Bolt Type Allen Key Head (Boost 148mm Hub)

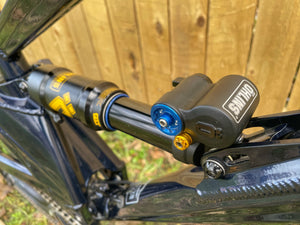

Rear Shock - Ohlins TTX1 Air 230x65
Headset - Cane Creek 49mm for Tapered Steerer
Fork - Ohlins RXF 36 M.2 Air 160mm 27.5
Chain - KMC 12spd
Shifters - SRAM SX Eagle
Cassette - E13 Helix R 9-50t
Bottom Bracket - Race Face
Crankset - Race Face Aeffect 32t
Rear Mech - Shimano XT 12spd
Wheelset - Stans Flow Mk4 + Hope Pro 4 (Black)
Tyres - Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 27.5
Brakes - Shimano SLX Trail 203/180
Saddle - SDG Strange Bel Air III
Handlebars - Burgtec RideWide Enduro 800mm
Grips - Strange Grappler Lock-On
Seatpost - Fox Elite Transfer 175mm Drop
Seat Clamp - Strange Bolted
Stem - Burgtec Enduro Black 42.5mm
Large bike - in stock
